EAN: 4011395295120

Bilder-Quelle: Netzwerkartikel.de

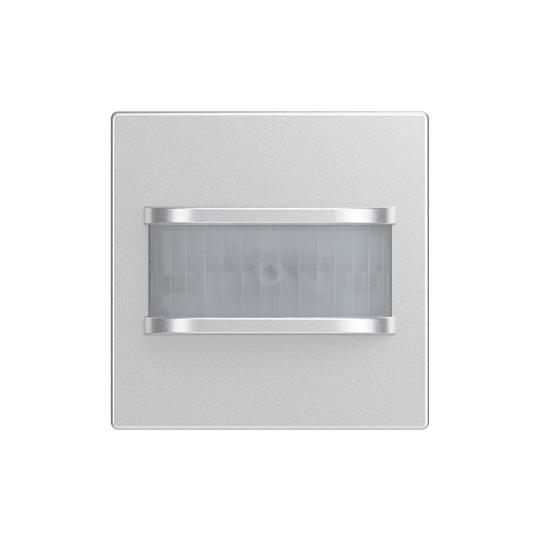

Functions at a glance Movement detector sensor with with measurement of ambient light. For automatic switching of devices dependent on motion and brightness. Push switch function possible at all times. In combination with dimmer insert flex: dimming function of lighting and selectable light value storage. With enabling of pre-warning of switch-off for stairwell operation. Compatible with all flexTronic inserts. Adjusting elements on rear side. Extension of the detection range by means of master slave combination. Additional activation option via push-button input on the flush-mounted insert. With continuous light continuous Off function. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 14 sectors with 56 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. For relay insert flex 1gang 64811 U. For e-contact insert flex 1gang 64814 U. For relay insert flex 2gang 64821 U. For LED touch dimmer insert flex 1gang 64851 U. For extension insert flex 64891 U. Mounting height: 22 mm. Control element: 2 controllers for setting the brightness switching threshold and switch-off delay. Temperature range (device): -5 °C - 45 °C Storage temperature range: -25 °C - 70 °C Detection range: frontal: 12 m lateral: 12 m at mounting height: 1.1 m Detection range 2: Brightness limit value: 5 Lux - Up to daytime operation Detection angle: 180 ° Dimensions: (L x W x D): 63 mm x 63 mm x 35 mm Mounting height: 0.8 m - 1.2 m Please order the respective flush-mounted insert separately. The range specifications refer only to an ambient temperature of 21°C. Surface painted.Busch-Jaeger 2310EUGL VA-803-11 BUSCH-JAEGER 64762-866 64762-866 64762-866 4011395295120
